INDUSTRIAL PRESSURE TRANSMITTERS
Complete Offering of Ranges, Connections and Outputs

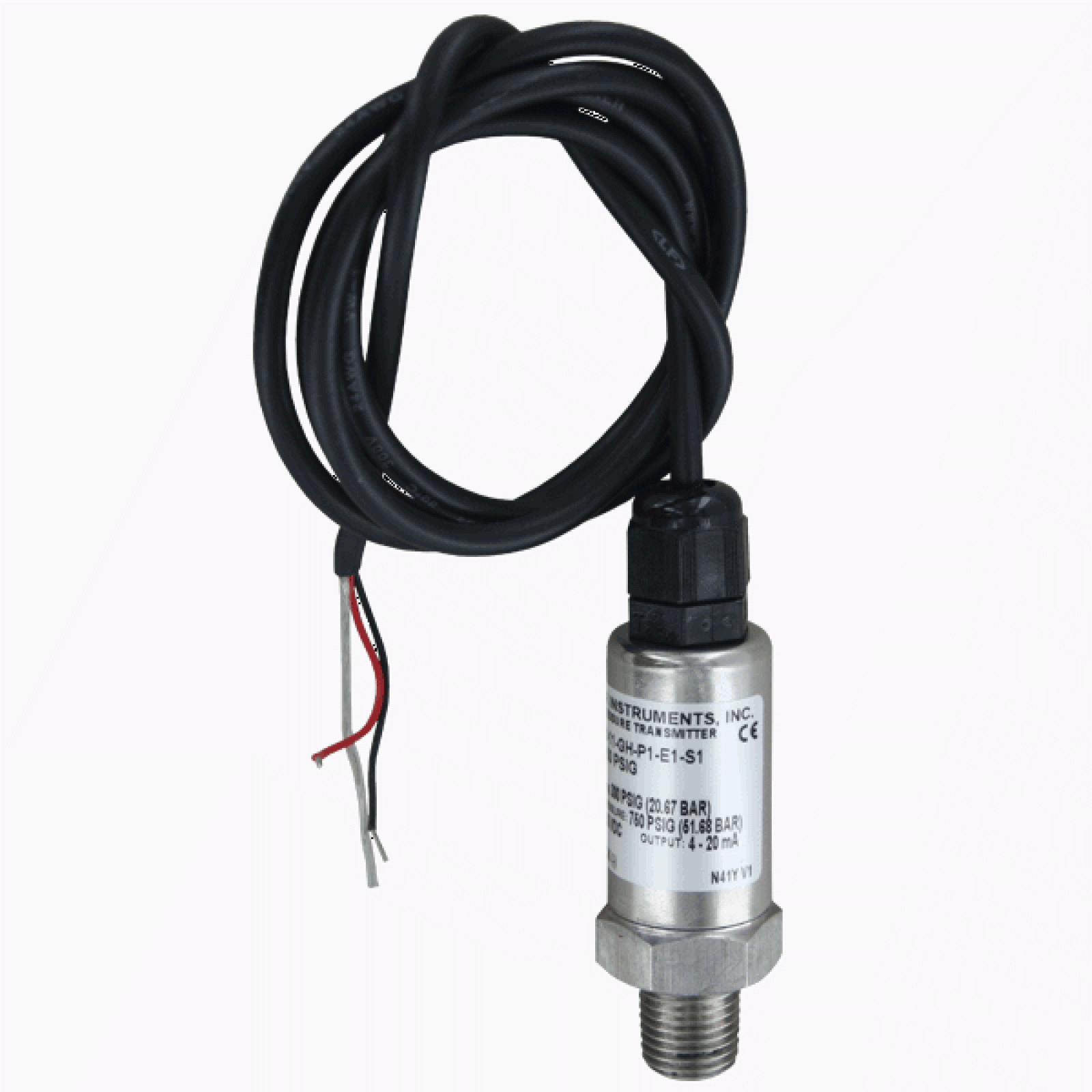

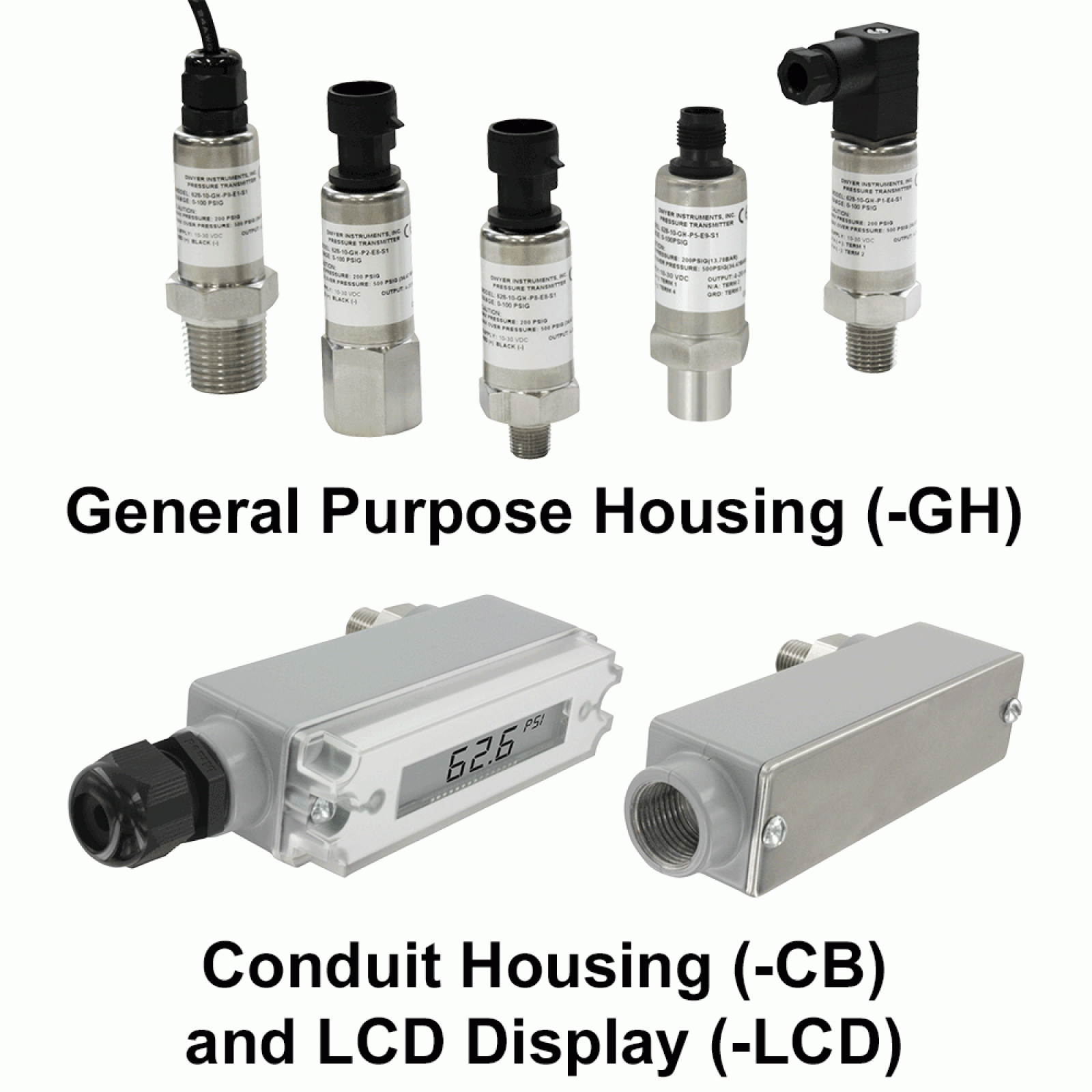

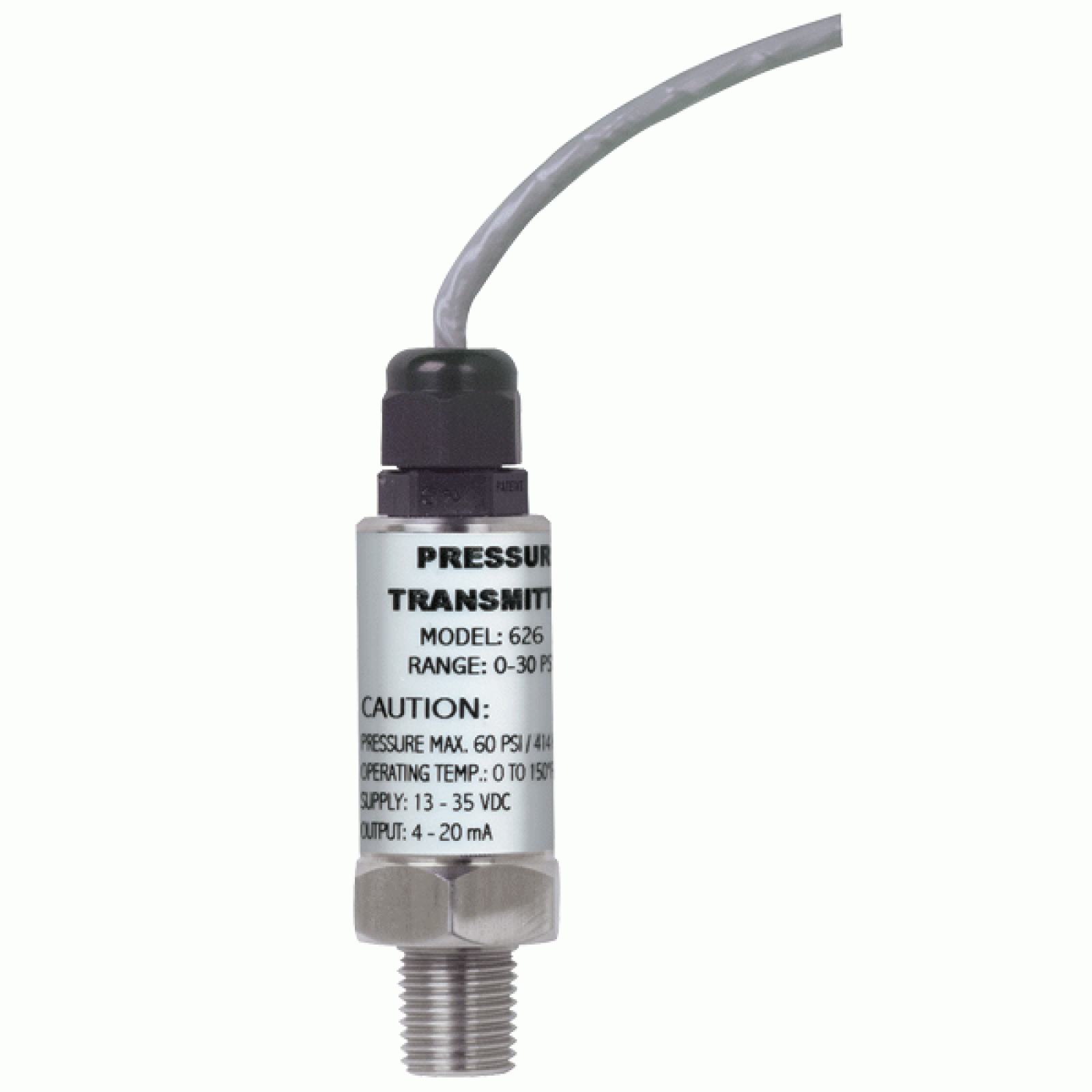

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full-scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.

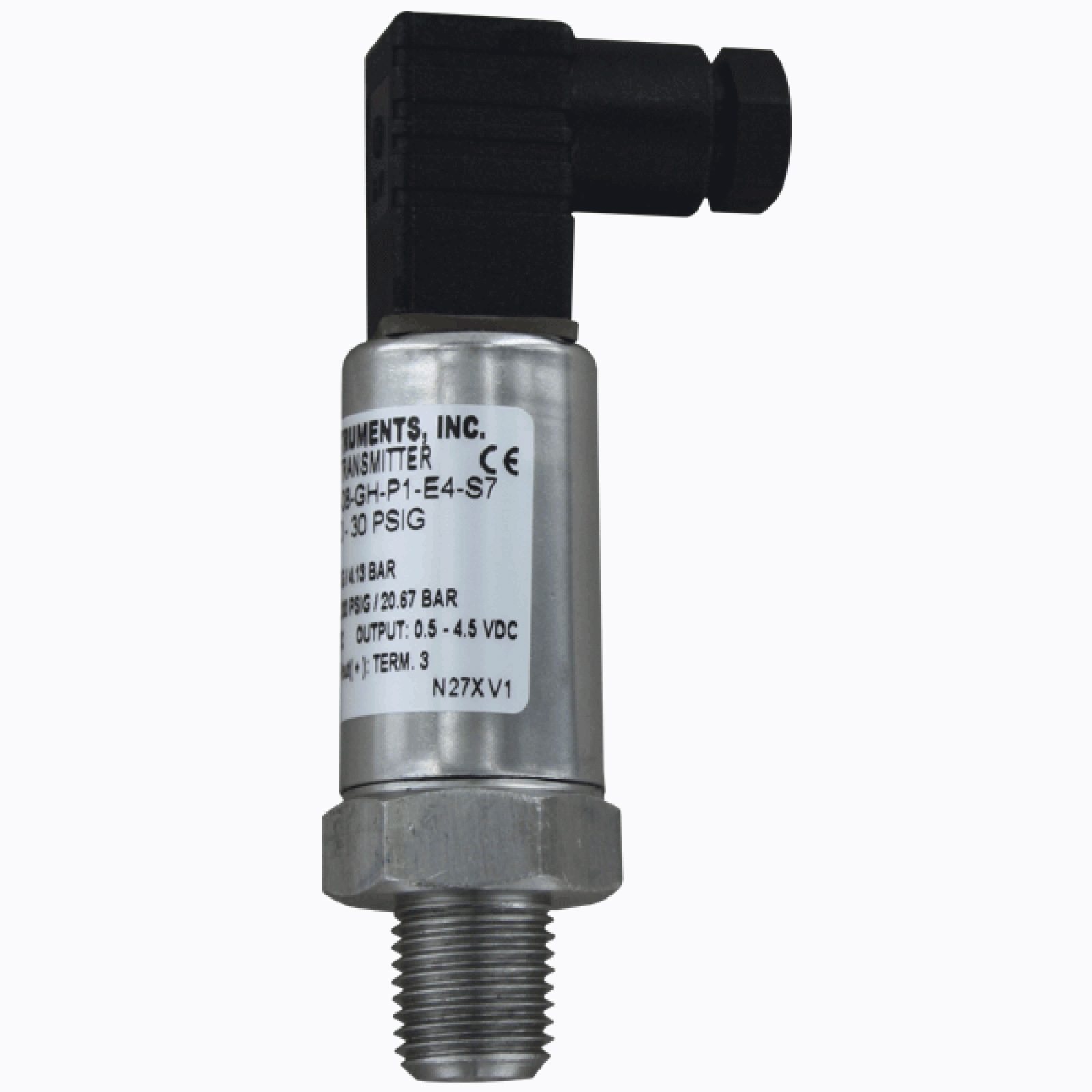

The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full-scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals.
The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
FEATURES/BENEFITS
• NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
• Robust 316 SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
• A wide range of models and connections that can meet pressure measurement specifications from low to very high
APPLICATIONS
• Compressors
• Pumping systems
• Irrigation equipment
• Hydraulic
• Industrial process monitoring
