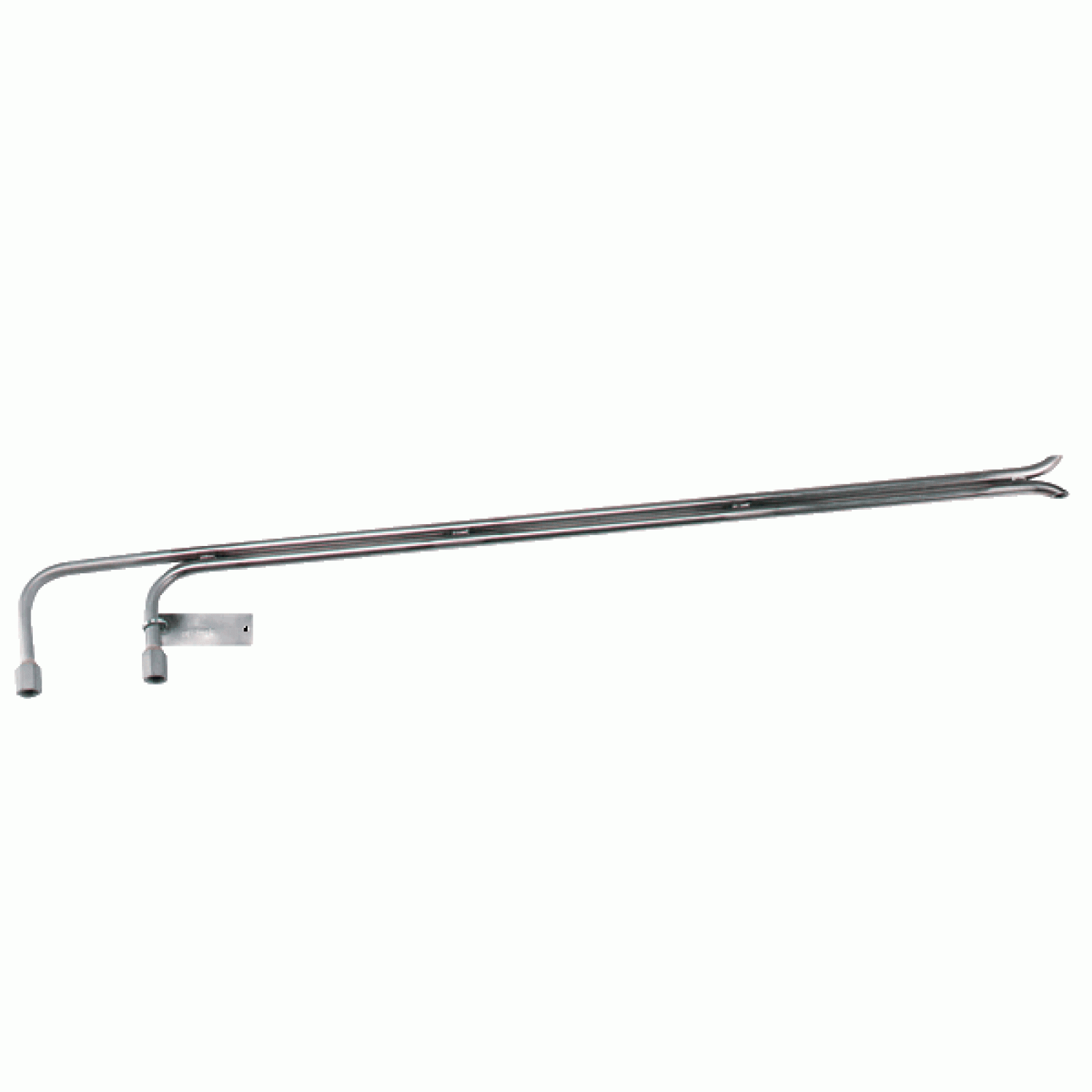

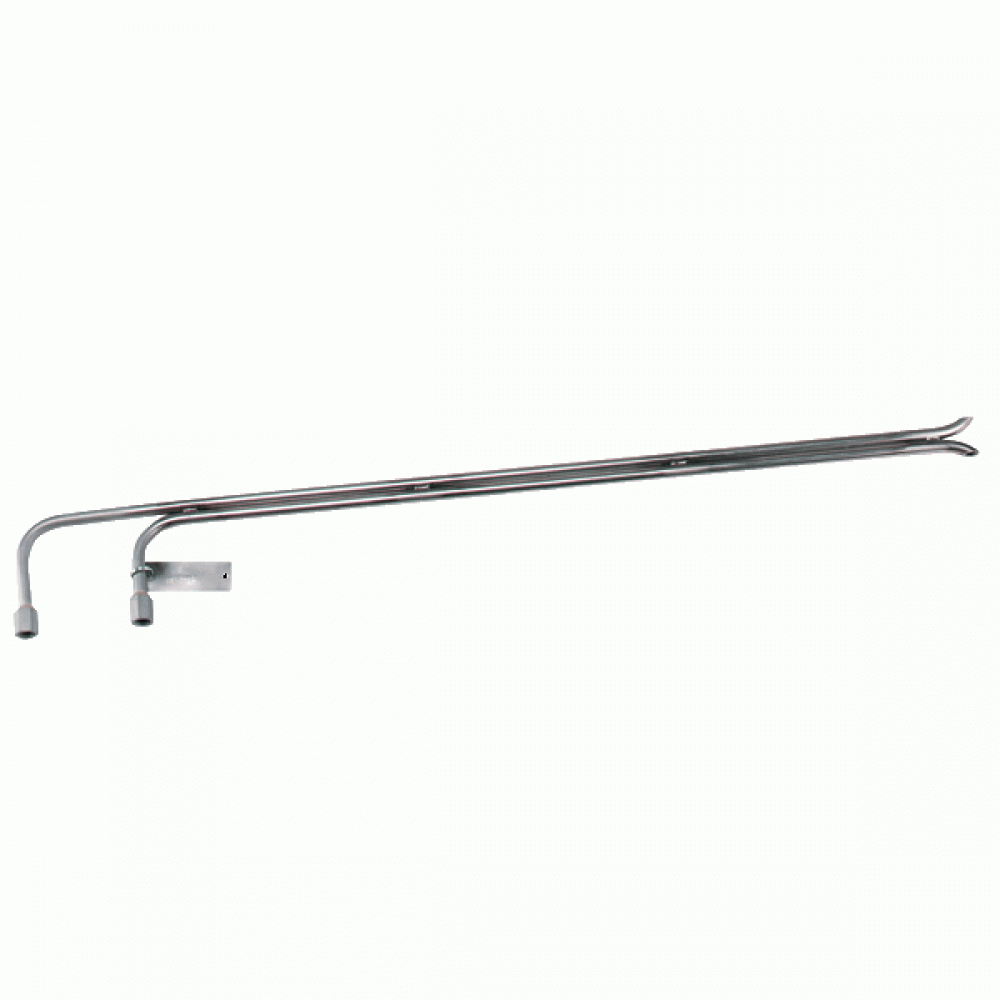

”S” TYPE STAINLESS STEEL PITOT TUBES
Large, Open Tip Design Resists Fouling; Optional Permanent Mount Models

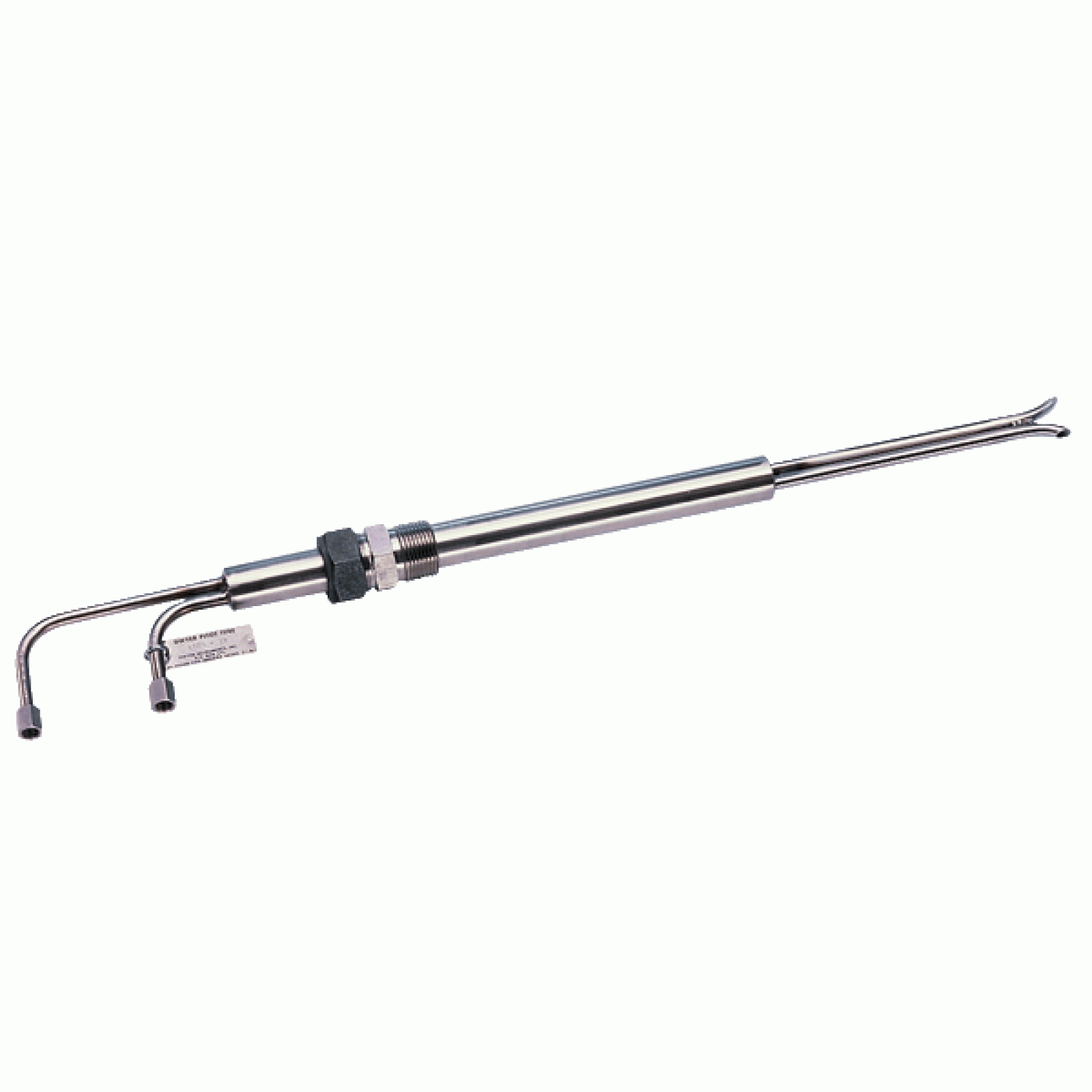

The Series 160S “S” Type Stainless Steel Pitot Tubes are designed specifically for flow measurement of dirty, particulate laden air or gas streams typical in smoke stack and other environmental testing. Total and static pressure tubes are precisely aligned and welded together every 6 inches for maximum accuracy, strength, and long term durability. Permanent mount (PM) models include a 1˝ welded stainless steel sleeve and adjustable compression fitting with 1˝ MNPT mounting threads.
FEATURES/BENEFITS
• Large 5/16˝ stainless steel tubing resists plugging under harsh conditions
• 1/8˝ FNPT connections are permanently welded to unit
• Able to be used in up to 1500°F (815.5°C) and 100 psig (6.89 bar)
APPLICATIONS
• Monitor or control air velocity or air flow in particulate laden air streams
