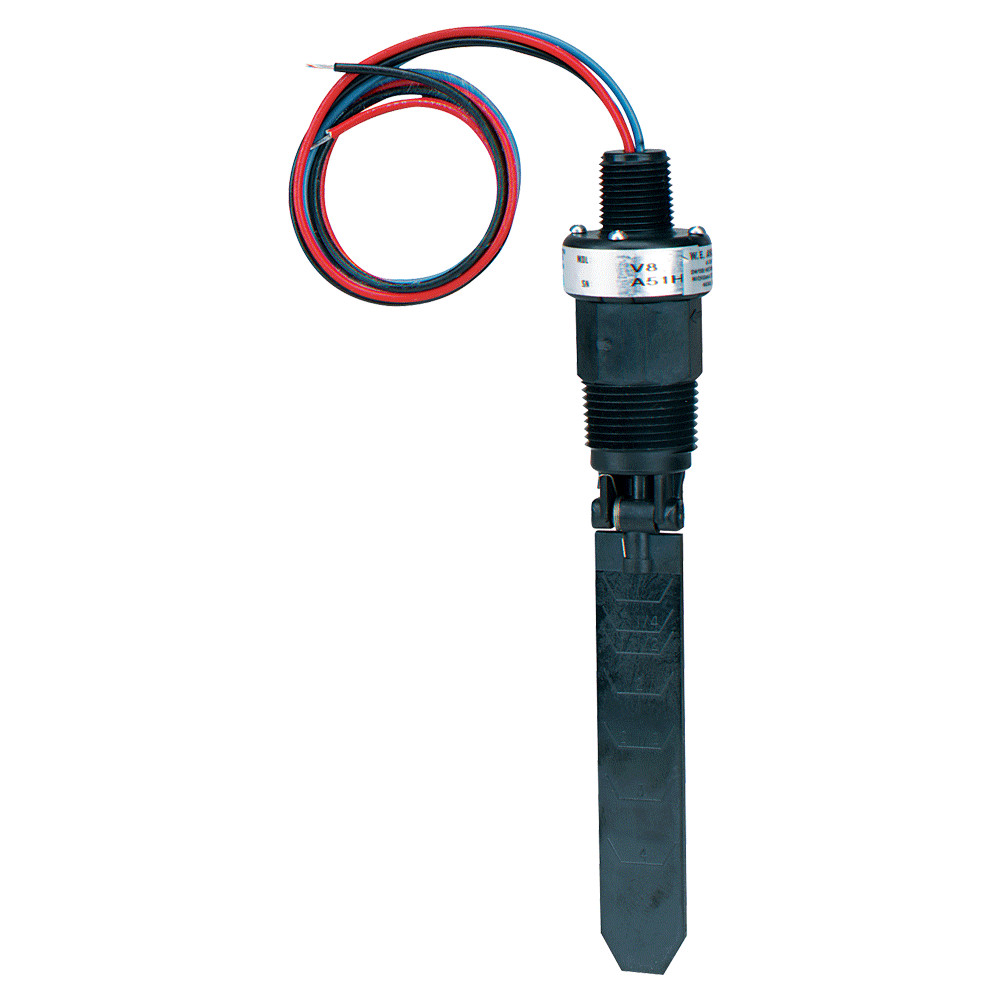

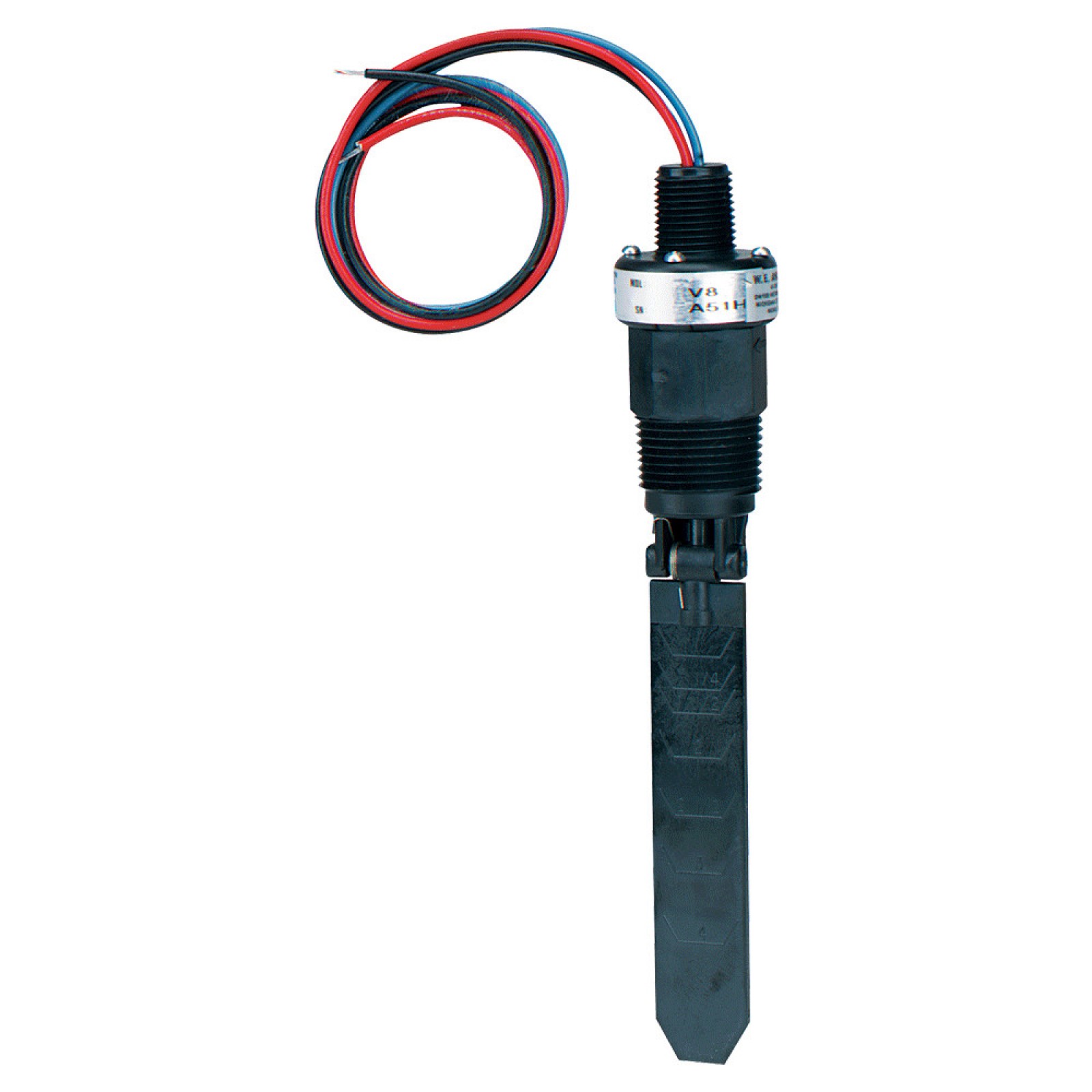

FLOTECT ® VANE OPERATED FLOW SWITCHES
Field Adjustable – 1 to 6 Inch Pipe, Leak Proof Body, Chemical Resistance
The Series V8 Flotect ® Vane Operated Flow Switches are ideal for protecting unattended equipment from damage or loss of production.
This Series is available for installation in a 1 to 6˝ pipe with operating pressures are up to 150 psig (10 bar) and temperatures to 212°F (100°C).
FEATURES/BENEFITS
• UL recognized as an industrial motor controller per UL standard 508, suitable for mounting in a protected environment
• Magnetically actuated switching design gives superior performance with free-swinging vane which attracts a magnet within the switch body, actuating a snap switch with no bellows, springs, or seals to fail
• Leak proof body and vane constructed of tough durable polyphenylene sulfide which has excellent chemical resistance
• A full size trimmable vane is provided with molded-in graduations
APPLICATIONS
• Chemical processing
• Air conditioning
• Refrigeration
• Heating systems
• Cooling lines
• Machinery
• Liquid transfer systems
• Water treatment
• Food processing
• Machine tools
