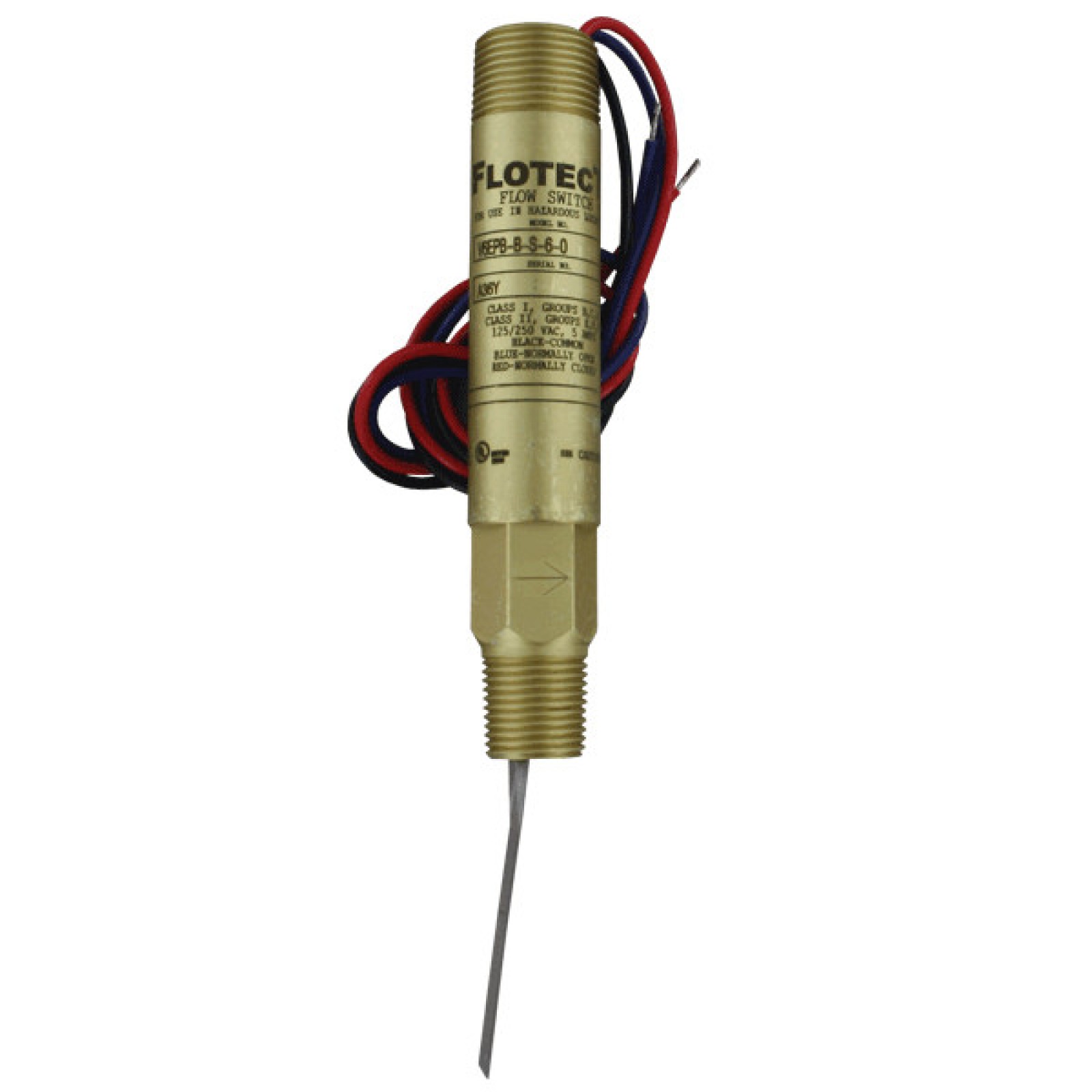

FLOTECT ® MINI-SIZE FLOW SWITCHES
Monitor Flow in 1/2˝ to 2˝ (12.70 to 50.80 mm) Pipe, Explosion-Proof, Compact
The Series V6 Flotect ® Mini-Size Flow Switches are surprisingly compact, and specifically engineered to monitor liquid, gas, or air flows.
Time tested in thousands of pipeline installations and processing plants around the world, this Series is Weatherproof, designed to meet NEMA 4 and Explosion-proof (listing included in
specifications).
Tees are available for installation in pipelines from 1/2˝ to 2˝ (12.70 to 50.80 mm).
With bushings added the unit is easily adapted to 1/4˝ and 3/8˝ (6.35 and 9.53 mm) piping.
BENEFITS/FEATURES
• Unique magnetically actuated switching design gives superior performance
• Features a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
• Leak proof body machined from bar stock
• Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to be shut down

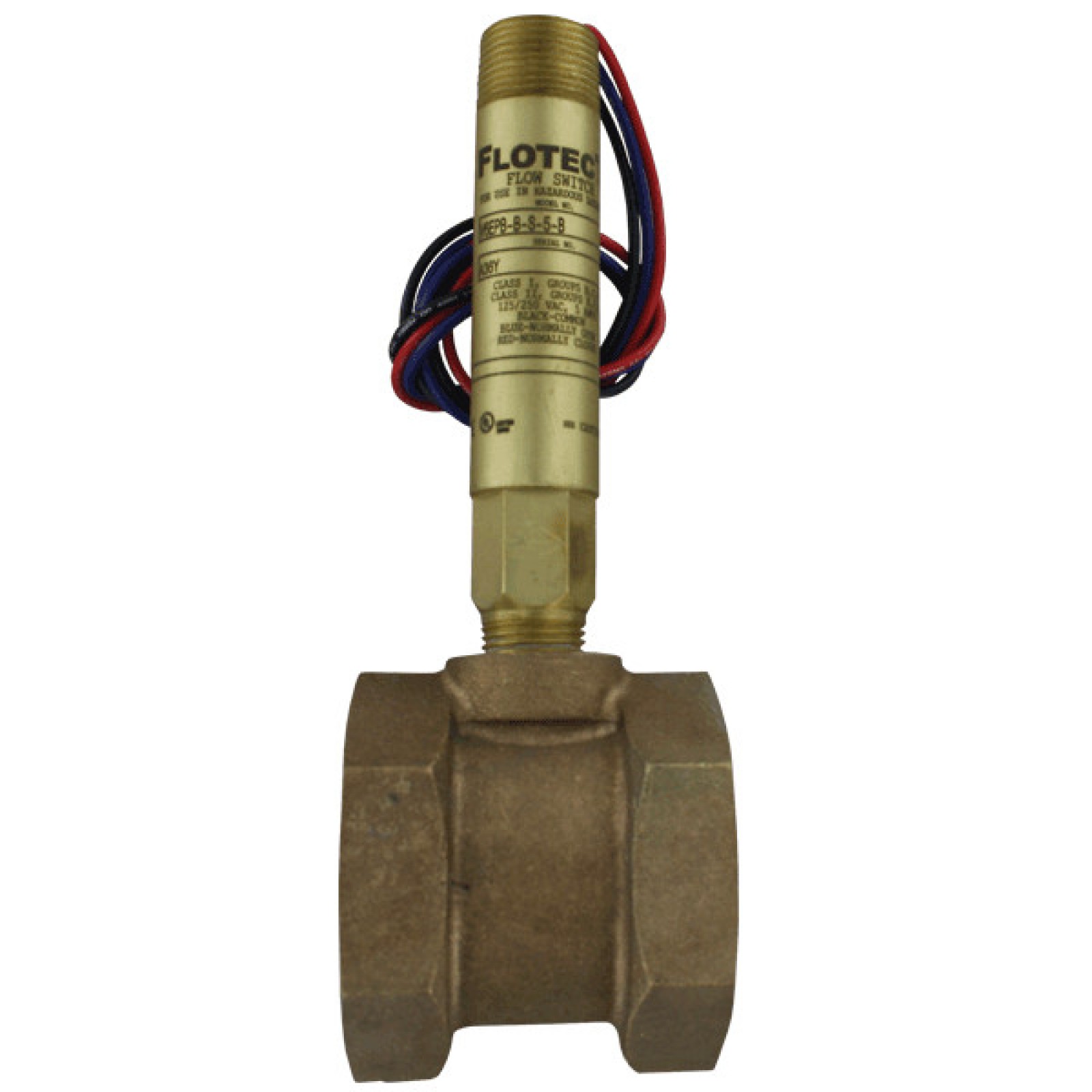

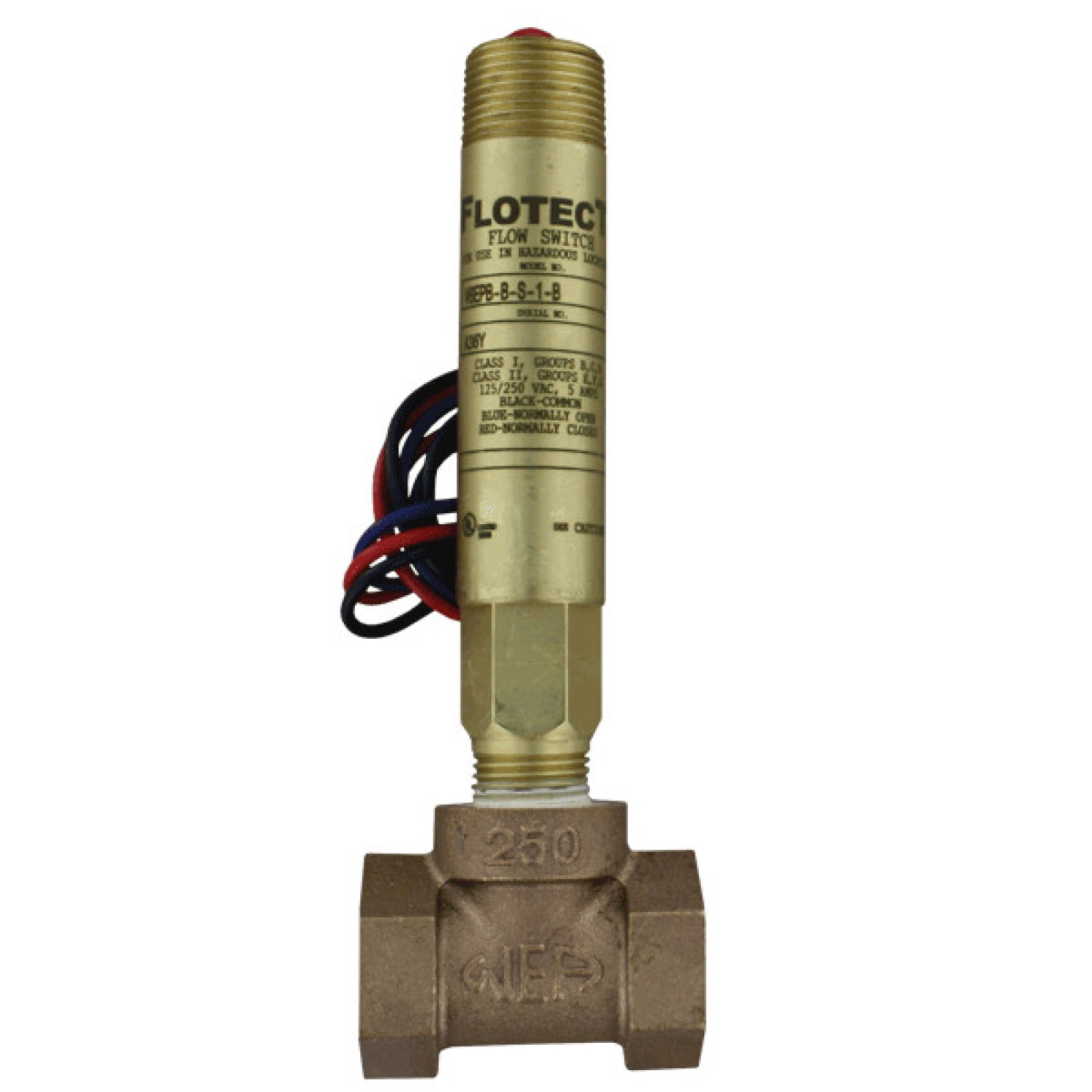

• Choice of models in a tee with calibrated vane or field adjustable trimmable vane
• Easy installation with simple pipe insert via tee and simple electrical switch connections
• High-pressure rating of 1000 psig (69 bar) with brass body and 2000 psig (138 bar) with stainless steel body
• Low flow model offers field adjustable set point
APPLICATIONS
• Protects pumps, motors and other equipment against low or no flow
• Controls sequential operation of pumps
• Automatically starts auxiliary pumps and engines
• Stops liquid cooled engines, machines and processing when coolant flow is interrupted
• Shuts down burner when air flow through heating coil fails
• Controls dampers according to flow
• Signals alarm when emergency shower or eyewash station in use
