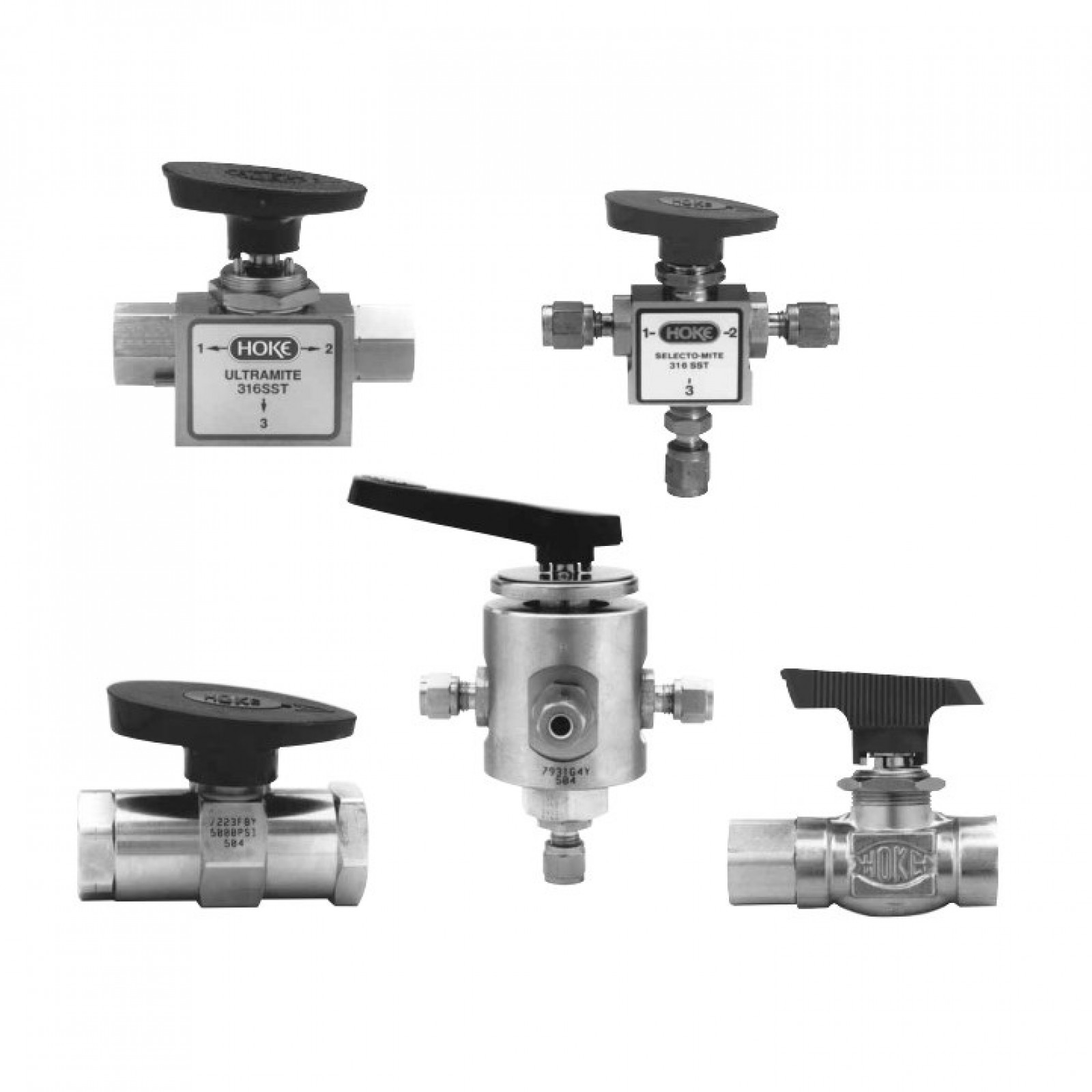

HOKE® General Purpose Ball Valves
71, 72 Series 2-Way Ball Valves
70 Series Welded End 2-Way and 3-Way Ball Valves
71, 76 Series 3-Way Ball and Trunnion Valves
79 Series 4-Way, 5-Way Trunnion Valves
HOKE ® ball valves provide a wide range of capabilities for various applications. The HOKE ® general purpose ball valve line includes 2-, 3-, 4- and 5-way designs. Ball and trunnion designs provide a wide range of pressure capabilities. GYROLOK ® and fixed end connections are also available.
Select a ball or trunnion valve for:
• simple operation
• visual indication of flow
• full porting for maximum flow
• rodability
• long cycle life
Choose a 2-way ball valve for quick, quarter-turn, on-off service. A 3-way ball valve employs 180° operation for diverting flow from one line to another.
4-way valves are dual switching valves, changing two flow paths at the same time. 5-way, or diverter, valves allow flow through any of four possible paths.
Before making your valve selection, be sure to consider the system pressure, operating temperature, required flow and materials of construction.
